Product List

OMNI Handsets see new OMNI RADIO Page

OMNI 2.4GHz technology by Timpdon Electronics in the UK


OMNI Receivers


FRx23H or FRx23V

£24.00

 FRx23 Receiver. Has 4 servo channels. Can be used for live steam or DC electric models. Also has telemetry input for feedback from model to handset. With horizontal or vertical pins.(Horizontal pins illustrated) Optional long aerial  £2  (125mm with 32mm tip aerial) Size: 44 x 19 x 9.5mm


FRx22H or FRx22V

£24.00

 FRx-22 Receiver for analogue DC electric models. Has 3 function switches plus serial data output for MCS units which can provide up to 8 additional functions. Also has telemetry input for low battery warning unit. Available with horizontal or vertical pins. (Horizontal pins illustrated) Optional long aerial £2  Size: 44 x 19 x 9.5mm


OMNI FRx24-2A

£56

 FRx24-2A receiver combined with 2 amp DCC interface module to operate DCC decoders. 12-28v input For use with OMNI Tx4 series transmitters. Optional long aerial £2 extra

 Size: 52 x 21 x 19mm Can be supplied slim and long - please contact us for details


OMNI FRx24-5A

£59

FRx24 receiver combined with 5 amp DCC interface module. For use with OMNI Tx-4 series transmitters. Includes DCC interface module. With horizontal pins. Optional long aerial (£2 Extra).  Size: same as 2A


OMNI FRx24-2A ESC

£56

OMNI receiver combined with 2A DCC interface module with additional ESC output for speed controller. The speed command from the handset is sent to the DCC decoder and the ESC in parallel, so that the decoder can be used as a sound card, with the ESC driving the motors. Size: 52 x 21 x 19mm


FRx-25

£53

FRx-25 receiver for analogue DC electric models with the popular Timpdon Autoshuttle functions. The default mode of operation is manual, but with the push of a button, the unit is set into Auto mode where the movement of the vehicle is controlled automatically by track magnets. Perfect when you want to relax and watch the trains go by! You can regain control at any time with the press of a button on the handset. See instructions on LINKS page for details.


Speed Control


ESC-140

£14.00

 ER-2 Manual Speed Controller. 6-16v.

24v version available for £17 Supplied by MFA-Como.

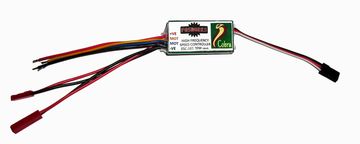

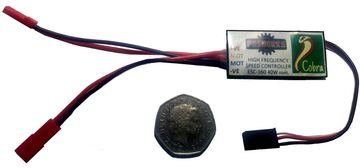

ESC-160

£31.50

 Cobra High Frequency Electronic Speed Controller. 6-28v. 30W. 44x22x11mm. Perfect for all brushed DC motors including coreless. Has great features including 3 power curves, programmable inertia and zero detection to avoid model runaway when switched on. See instructions for full details.


ESC-161

£29.50

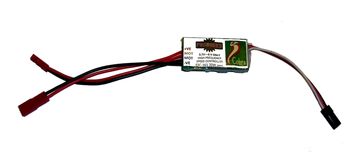

 Cobra High Frequency Electronic Speed Controller. 3.7-12v. 30W. 44x22x11mm. Perfect for all brushed DC motors including coreless. The lower voltage range is ideal for models with 4 cell battery packs.  Has great features including 3 power curves, programmable inertia and zero detection to avoid model runaway when switched on. See instructions for full details.


ESC-165

£33.00

 Cobra High Frequency Electronic Speed Controller wired ready for sound cards. 6-28v. 30W. 44x22x11mm. Perfect for all brushed DC motors including coreless. Has great features including 3 power curves, programmable inertia and zero detection to avoid model runaway when switched on. See instructions for full details.


ESC-180

£16.50

 Manual speed controller fully wired with reversing switch and charging loom, in our Plug and Play format with JST connectors.

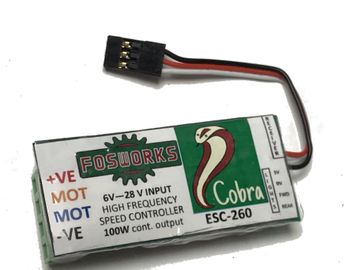

ESC-260

£39.00

 Cobra High Frequency Electronic Speed Controller. 6-28v. 100W. 53x26x14mm. Perfect for all brushed DC motors including coreless.


OMNI Switcher Units


MCS-1

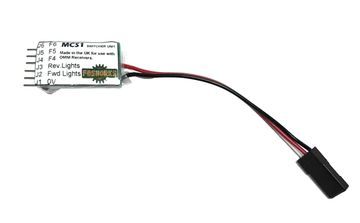

£18.50

 Provides 3 auxiliary functions and directional lighting from the Rx22 Data channel. 28 x 16 x 11 mm.


MCS-2

£18.50

 Provides 5 auxiliary functions from the Rx22 Data channel. 28 x 16 x 11 mm.


Radio Control Accessories


SND-400

£17.80

 Switcher Unit. 2 way, latching-momentary. (Lights & sound cards). For standard r/c systems. Not needed with OMNI.


RCA-120

£11.30

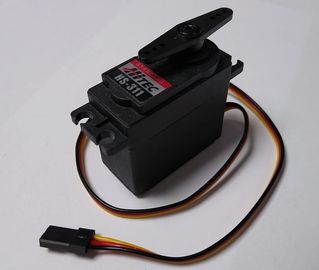

 Servo. Standard Hitec Servo 3kg cm torque 40x36.5x20mm.


RCA-124

£21.00

 Servo. Hitec HS-65HB 1.8kg cm torque. Karbonite gears 24x23x12mm.


RCA-125

£20.50


Servo. Hitec HS-82MG 3.00kg cm Metal gears 29.7x29.5x12mm.


RCA-154

£8.00

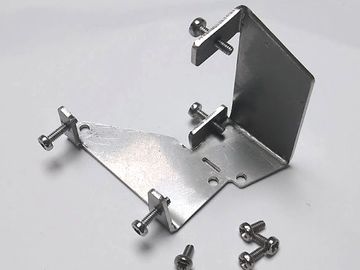

Hitec HS-65 Servo Bracket for horizontal and vertical mounting of two servos or can be split and used seperately. With M2 mounting screws.


RCA-155

£8.00


Hitec HS-82 Servo Bracket for horizontal and vertical mounting of two servos or can be split and used seperately. With M2 mounting screws.


RCA-134

£3.00

400mm  Servo extension lead .


RCA-135

£2.50

100mm Servo extension lead.


RCA-140

£3.50

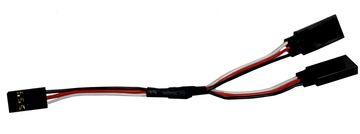

 Servo Y splitter lead 100mm. Run two servos from one channel.


Lighting


LT-105

£3.00

 Pack of 4 red 3mm LEDs with resistors fitted, suitable for up to 24v.


LT-110

£4.50

 Pack of 6 warm white 3mm LEDs with resistors fitted, suitable for up to 24v. Ideal for diesel loco/unit marker lights


Switch Looms


PNP-100

£9.50

 No.1 Wiring loom. Charging socket & Slide Switch with best quality flexible silicon leads and JST connectors.


PNP-101

£9.50

 Shortened No.1 Wiring loom. Charging socket, Slide switch & Futaba connector for connection to receiver. For use on models with servos, such as live steam.


PNP-110

£9.50

 No.1 Wiring loom. Charging socket & Mini Toggle Switch with best quality flexible silicon leads and JST connectors.


PNP-111

£9.50

 Shortened No.1 Wiring loom. Charging socket, Mini Toggle Switch, & Futaba connector for connection to receiver. For use on models with servos, such as live steam.


PNP-120

£9.50

 No.1 Wiring loom. Charging socket & Sub Mini Toggle with best quality flexible silicon leads and JST connectors.


PNP-130

£12.00

 No.2 Wiring loom. Charging socket, slide switch & LED indicator. For mounting in control panels as provided in our r/c kits.


Plug and Play wiring


PNP-170

£2.50

 JST-BEC Motor plug wire with heat shrink sleeves and interference suppressor. Blue and yellow best quality flexible silicon leads


PNP-200

£3.00

 JST-BEC Male & Female red connector plugs with best quality flexible silicon leads. 100mm length. 1 pair.


PNP-201

£3.60

 JST-BEC Male & Female red connector plugs with best quality flexible silicon leads. 150mm length. 1 pair.


PNP-210

£1.50

 JST-BEC Male connector plug with silicon wire. 100mm length. (Gives power)


PNP-211

£1.80

 JST-BEC Male connector plug with silicon wire. 150mm length. (Gives power)


PNP-215

£2.50

 JST-BEC Male plug with silicon wire and 5A fuse. (Battery lead)


PNP-220

£1.50

 JST-BEC Female connector plug & wires. 100mm length. (Receives power)


PNP-221

£1.80

 JST-BEC Female connector plug & wires. 150mm length. (Receives power)


PNP-250

£5.00

 JST-BEC Male & female BCV leads reinforced tender to engine


PNP-260

£2.50

 JST-BEC Male BCV lead (Tender) Black reinforced.


PNP-270

£2.50

 JST-BEC Female BCV lead (engine) Black reinforced.


PNP-280

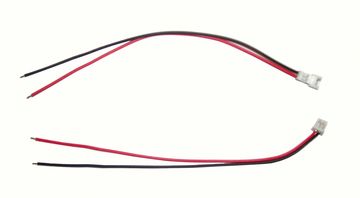

£3.00

 JST Micro Male and Female plugs with leads. Ideal for use in small models where the red JSTs are too bulky.

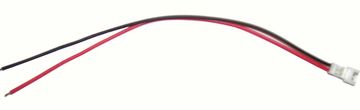

PNP-290

£1.50

 JST Micro Male plug with leads.


PNP-300

£1.50

 JST Micro Female plug with leads.


PNP-400

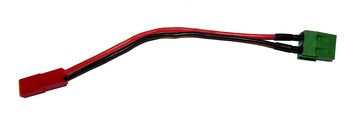

£2.00

 JST-BEC Female connector plug, connected by wires to a two-way terminal block. 100mm length. Ideal for motors which are already wired to avoid soldering


PNP-510

£7.50

 Wiring interface for NEM 652 DCC decoder with speaker terminals.


Chargers


CHG-100

£24.00

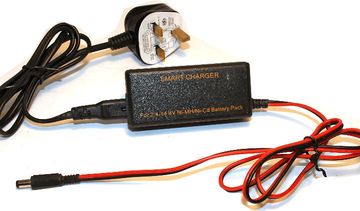

 Smart Charger 2-12. 2.4v to 14.4v charger. Indicator lights. Fast, automatic charger which bulk charges at 500mA then switches to trickle charge. Not recommended for AAA cells.


CHG-200

£29.50

 Smart charger 12-20. 14.4v to 24v battery charger. Indicator lights. Fast, automatic charger for higher voltage packs, not recommended for AAA cells.


CHG-400

£8.50

 Cell Checker. Plugs into charging socket and shows battery voltage.


CHG-425

£12.00

 Recovery charger. Bring flat NiMH rechargeable battery packs back to life. Suitable for all packs from 2.4V to 24V


CHG-500

£10.00

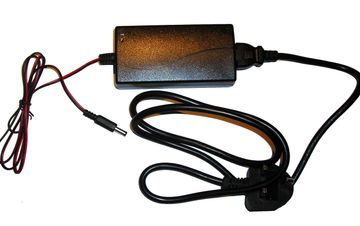

 12v Power Supply for track side sound equipment.


UC1

£22.00

 Universal charger for all NiMH battery packs from 2 to 16 cells (2.4v - 19.2v), complete with voltage display showing status of the battery. This is not a fast charger, nor is it automatic, but it does allow you to take the best care of your battery packs. You can set the charge current to suit the battery - even for AAA size cells - and you can fully monitor the charging process and diagnose battery problems.


Rechargeable Batteries

All of our battery packs are made up to order from good quality low self discharge cells, in whatever shape you want. Please specify by quoting the number of cells looking on the end of them, such as 2x2 or 4x3, or for a split pack, specify each individual part and the wire length to the next part, for example 6x1 +90+ 6x1 for a pack to fit into the side tanks of a loco.For more complicated packs, it's best to send us a picture Note there is an additional charge on split packs of £2.50 per split


BAT-AAA

£2.20

 AAA Custom made pack NiMH, with good quality, low self discharge cells - per cell. Includes fuse and JST connector.


BAT-AA

£3.00

 AA Custom made pack NiMH, with good quality, low self discharge cells - per cell. Includes fuse and JST connector.



BAT-SUB-C

£3.50

 Sub-C Custom made pack NiMH, with good quality, low self discharge cells - per cell. Includes fuse and JST connector.


Sound Cards And Modules


SND-200

£118.50

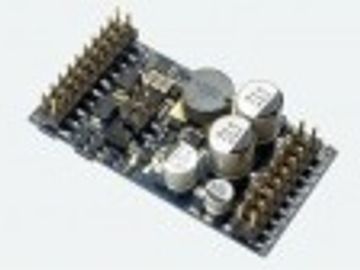

 ESU-Loksound v5 DCC decoder with sound project of your choice. 8 pin NEM-652 with speaker plug. Use with PNP-510 interface board.


SND-205

£167.00

 ESU-Loksound v5L DCC decoder with sound project of your choice and pre-wired with leads necessary for your project.


SND-210

£208.00


ESU-Loksound v5 XL DCC decoder with sound project of your choice.


SND-350

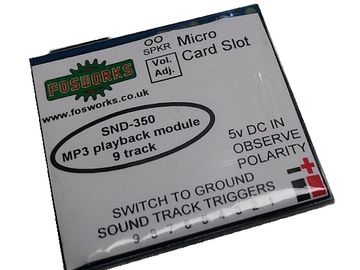

£18.00

 MP3 playback module. Play back any of 9 MP3 tracks from the function buttons on your handset. Tracks can be loaded onto the supplied micro SD card from your computer.


SND-360

£12.00

 MP3 playback module. Play MP3 track from micro SD Card supplied. Create a sound file on your computer and use it on your model. Super slim, only 39 x 23 x 6 mm


SND-700

£59.00

Mylocosound Universal Steam Sound card 6-24v. Six auxiliary sounds - Whistle, Bell, Guards Whistle, Safety Valve release, Westinghouse pump and injector.


SND-701

£59.00

Mylocosound Universal Diesel Sound card 6-24v. Five auxiliary sounds - Horn 1, Horn 2, Guards Whistle, Brake release, Engine stop/start.


SND-702

£59.00

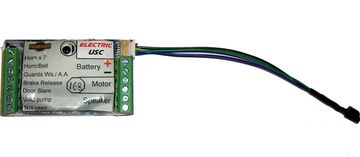

Mylocosound Universal Electric Sound card 6-24v. Five auxiliary sounds - Horn1, Horn2 or air whistle, conductors buzzer,


SND-703

£59.00

MLS Light Diesel Sound card 6-24v. Five auxiliary sounds


SND-704

£59.00

Mylocosound Tram and streetcar soundcard with electric motor sounds, horns, whistles, bells and conductors buzzer. Optional rail squeal and brake sounds. Size: 55 x 33 x 11 mm


SND-705

£59.00

Mylocosound Railbus sound card with 5 selectable engine sounds, start-up, shut-down, gear change, 6 horns inc. Klaxon, bell, guards whistle and brake squeal. Size: 55 x 33 x 11


SND-710

£12.00

Remote control for above USCs to set up and also activate sounds


Sound Accessories

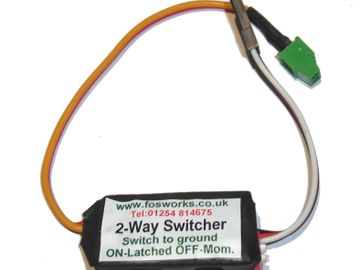

SND-400

£17.80

Switcher Unit. 2 way. To sound whistles and horns etc. where standard r/c servo receiver is being used. Allows each channel to be independently set as a momentary or latching function. (Switches to system ground, not volt free)


SND-410

£2.50

Push switch & wires. To manually sound whistle and horn.


SND-420

£3.00

Reed switch & magnet. To set off whistles and horns on soundcards or for Autoshuttle operation.


SND-430

£2.00

Three way auxiliary cable for FRx-22 to sound card.

SND-441

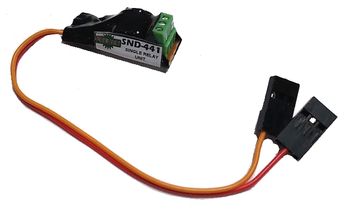

£9.90

Single relay board to connect to FRx-22 receiver, giving one volt free contact pair to operate auxiliary functions on proprietory sound cards such as Phoenix, Piko etc. Can be used for other functions with 2A max current draw. Dimensions: 18x18x9 mm.

SND-442

£14.90

Twin relay board to connect to FRx-22 receiver, giving two volt free contact pairs to operate auxiliary functions on proprietory sound cards such as Phoenix, Piko etc.

Can be used for other functions with 2A max current draw. Dimensions: 30x18x9 mm.

SND-443

£19.90

Triple relay board to connect to FRx-22 receiver, giving three volt free contact pairs to operate auxiliary functions on proprietory sound cards such as Phoenix, Piko etc.

Can be used for other functions with 2A max current draw. Dimensions: 43x18x9 mm.


Speakers


SND-520

£3.50

Speaker by Alan Butcher. 50mm Dia. 9mm deep.


SND-525

£6.50

SND-520 speaker as above, mounted in a resin enclosure. 50mm Dia. 19mm deep.


SND-535

£7.00

SND-520 speaker as above, mounted in under-cab-roof enclosure - great sound


SND-540

£2.50

Speaker. 40mm Dia. 10mm deep. 8 Ohm 0.25W. Small.


SND-565

£6.00

Laptop speaker. 41x21x9mm. Small, mounted in rectangular enclosure. 4 or 8 ohms.


SND-568

£6.00

Micro speaker in sound box. 22x17mm x 10mm deep with micro jst.


SND-575

£6.00

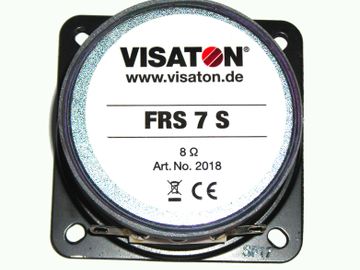

Speaker, the best of its type - German Visaton 50mm Dia 17mm deep 3W. 8 Ohm.


SND-578

£10.50

DCC quality Visaton compact speaker. 50mm x 25.4mm. 10W 4 Ohm


SND-580

£14.00

Most impressive quality German made Visaton speaker. 66.5 x 66.5mm 37mm deep. 8 Ohm 8W.


SND-582

£14.00

Most impressive quality German made Visaton speaker. 66.5 x 66.5mm 37mm deep. 4 Ohm 8W.


SND-590

£12.00

Visaton quality replacement for Aristo class 66 with DCC. 4 Ohm.


SND-600

£7.00

Small super bass speaker. 31.1 x 28.1 x 14.8mm. 8 Ohm 3W.


SND-620

£11.80

Large Superbass speaker 51 x 51 x 40 mm 4 Ohm 3W, ideal for 0 gauge if you can fit it in.


Components


COM-100

£0.80

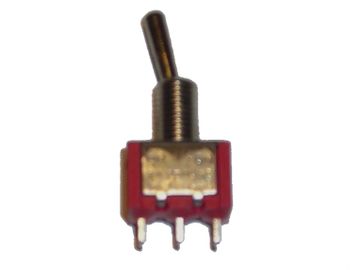

Toggle Switch - our popular miniature SPST toggle with metal case.


COM-105

£1.20

Toggle Switch - miniature DPDT toggle with metal case.


COM-110

£0.50

Slide Switch - ideal where a toggle would be too prominent.


COM-200

£1.00

Charging Socket - our standard 5.5mm by 2.1mm socket to match chargers.


COM-300

£0.20

F5A 5mm x 20mm glass fuse, 5A fast blow.


COM-301

£0.20

F3.15A 5mm x 20mm glass fuse, 3.15A fast blow.


Steam Accessories


STM-100

£34.80

LocoSaver Electronic Water Gauge with one probe.


STM-115

£33.20

R/C LocoSaver Electronic Water Gauge with one probe.


STM-120

£5.00

LocoSaver FosBush for retro fitting probe to existing boiler - specially designed expanding bush, no silver soldering required.


STM-140

£3.00

LocoSaver. 1/4" to 1/8" ME 40 probe adaptor bush.


STM-150

£4.20

Genuine Halletts SCO460C steam oil in dispensing bottle.


Other Accessories

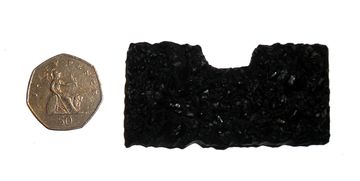

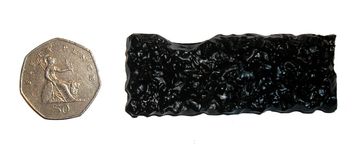

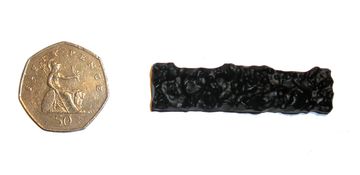

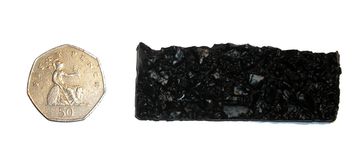

ACC-100

£8.50

Resin Coal Load for Gauge 1 14xx locos.


ACC-101

£8.50

Resin Coal Load for Gauge 1 45xx locos.


ACC-102

£8.50

Resin Coal Load for Gauge 1 57xx locos.


ACC-103

£8.50

Resin Coal Load for Gauge 1 61xx locos.


ACC-104

£8.50

Resin Coal Load for Gauge 1 4MT locos


ACC-105

£8.50

Resin Coal Load for Gauge 1 Terrier locos.


Motors And Wheelsets (Gauge 1)


MOT-100

£34.50

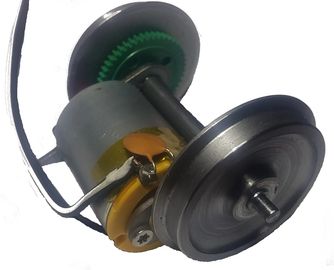

FosMotor 30. Nose hung 12v with 30mm Dia G1MRA steel wheels.


MOT-110

£34.50

FosMotor 34. Nose hung 12v with 34mm Dia G1MRA steel wheels.


MOT-200

£39.50

FosMotor CW. Nose hung 12v with customer wheels.


MOT-310

£6.10

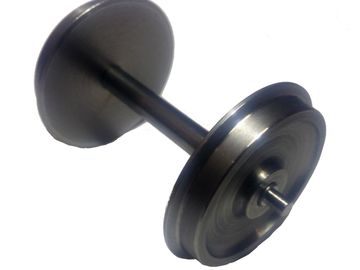

30mm Dia pair of G1MRA standard steel wheels with solid axle (1 wheelset)


MOT-320

£6.40

34mm Dia pair of G1MRA standard steel wheels with solid axle (1 wheelset).


MOT-500

£0.80 per bearing

Ball bearings.

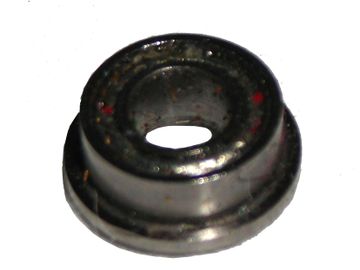

MOT-510

£1.10 per bearing

Flange bearing.

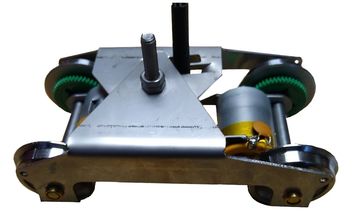

Diesel Locomotive Bogies (Functional frames only)

Now available for the following classes: 15, 16, 17, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 33, 35, 37, 40, 41 (1/32), 44, 45, 46, 47, 48, 50, 55, 57, 59, 60, 66, 70, 71, 74, 82, 83, 84. Bogies are also available for the following prototype or pilot scheme locos: 10800, 18100 (1/32), DP1, DP2, E1000. Please call for details. All are in 10mm scale except where noted.

2-axle

£87.40

3-axle (note 3-axle bogies only have 2 motors)

£96.00

4-axle (note 4-axle bogies only have 2 motors)

£104.60

Coach Bogies

Coming soon!

Radio Control Kits

 You don't have to buy every component separately. See our Kits page for a full range of radio control kits suited to various locomotives. .
