OMNI RADIO Handsets and Receivers

---

Tx2.0 Handset with centre off regulator and 3 auxiliary functions controlled by push buttons

Tx2.1 Handset with centre off regulator, electronic inertia control and 3 auxiliary functions controlled by push buttons

 Tx2.2 Handset with full range regulator, reversing switch, 3 auxiliary functions controlled by push buttons and electronic inertia control.

Handset with single control knob, two buttons for servo 3 and a single button for servo 4. Typically S1 would be used for regulator, buttons 1 and 2 for simplified reversers and button 3 for a whistle or by-pass valve. Perfect for simple control of most live steam locos from 0 gauge through to Gauge 3. With the OMNI system, servo calibration is quick and easy from the handset even whilst in steam and allows up to 135 degrees of servo movement. Use with STM-115 for boiler water indication - call.

Superceded by Tx3.1

 Handset with full range control knobs for servos 1 and 2, with a centre detent on both, two buttons for servo 3 and a single button for servo 4. The handset can be used for electric models too, with the ESC on S1. The Tx3.1 is ideal to replace the Roundhouse handset for their electrically powered models but will also work for their live steam models. An OMNI receiver will be required too. Use with STM-115 for boiler water indication - call for details.

 Tx4.0 Handset with centre off regulator and 12 auxiliary functions controlled by push buttons. Ideal starter handset to work with our OMNI DCC receivers.

 Tx4.1 Handset with centre off regulator, electronic inertia control and 12 auxiliary functions controlled by push buttons. Electronic inertia gives super smooth starts and stops, bringing more realism and less wear and tear on your engines.

Tx4.2 Handset with full range regulator, electronic inertia control, reverser switch and 12 auxiliary functions controlled by push buttons. Gives greater control compared to centre off regulator.

 Tx4.3 Handset with  centre off regulator, electronic inertia control, loco selector switch and 12 auxiliary functions controlled by push buttons. Gives simultaneous control of up to three locos.

 Tx4.10R Handset with full range regulator, 10 position loco selector, reverser switch and 12 auxiliary functions controlled by push buttons. Gives greater control compared to centre off regulator and up to 10 locos can be controlled simultaneously.An emergency stop function brings all locos to a controlled halt. The reverser switch has a centre off position which turns off directional lights on DCC decoders. (F0 function)

  Tx4.30 Handset with  centre off regulator,  loco selector switch and knob, with 12 auxiliary functions controlled by push buttons. Gives simultaneous control of up to thirty locos. Emergency stop feature brings all locos to a controlled halt.

 Tx4RTE Handset with prototypical main control knob, which increases power when turned clockwise and applies braking force when rotated anticlockwise from centre. It has a train weight adjustment control, reverser switch and 12 auxiliary functions controlled by push buttons. A whole new driving experience.!

 Tx4DM Handset with Deadmans Button which has a vigilance function, for safe operation of ride-on locomotives, 12 functions controlled by push buttons and toggle switch to work with our OMNI FRx242A-ESC-FS DCC receiver to give you control of your 4QD or I-Drive power controller with sounds from any NMRA compatible DCC decoder. Requires interface module in some.

Failure to hold the DM button or to respond to vigilance beeper, results in loss of power. Use with FRx24ESC-2A-FS failsafe receiver.

FRx-21 Receiver for servo operated models with added functions. Has 3 function switches and two servo channels. Now superceded by new version of FRx22

FRx-22 Receiver for DC electric or live steam models. Has 3 function switches plus serial data output for MCS units which can provide up to 8 additional functions. Also has telemetry input for low battery warning unit or boiler level indicator and two servo/ESC outputs  Available with horizontal or vertical pins. (Horizontal pins illustrated) Optional long aerial £2  Size: 44 x 15 x 9.5mm

 FRx-22 Receiver for DC electric or live steam models. Has 3 function switches plus serial data output for MCS units which can provide up to 8 additional functions. Also has telemetry input for low battery warning unit or boiler level indicator and two servo/ESC outputs  Available with horizontal or vertical pins. (Vertical pins illustrated) Optional long aerial £2  Size: 44 x 15 x 9.5mm

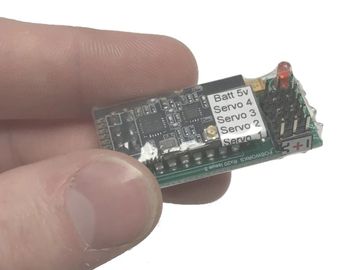

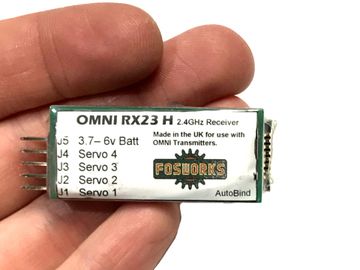

FRx23 Receiver. Has 4 servo channels, 2 fully proportional, 1 three position for simple reverser function/gas valve or whistle and 1 two position servo for coupling, bypass valve or simple whistle. Can be used for live steam or DC electric models. Also has telemetry input for feedback from model to handset. With horizontal or vertical pins.(Horizontal pins illustrated) Optional long aerial  £2  (125mm with 32mm tip aerial) Size: 44 x 19 x 9.5mm

FRx23 Receiver. Has 4 servo channels, 2 fully proportional, 1 three position for simple reverser function/gas valve or whistle and 1 two position servo for coupling, bypass valve or simple whistle. Can be used for live steam or DC electric models. Also has telemetry input for feedback from model to handset. With horizontal or vertical pins(Vertical pins illustrated) Optional long aerial  £2  (125mm with 32mm tip aerial) Size: 44 x 19 x 9.5mm

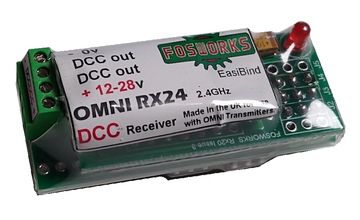

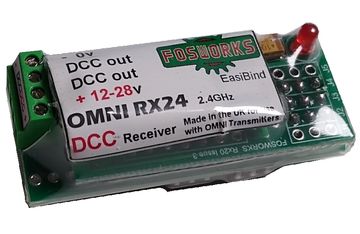

FRx24-2A OMNI receiver combined with 2 amp DCC interface module to operate DCC decoders. 12-28v input For use with OMNI Tx4 and Tx5 series transmitters. Good for smaller O gauge locos and small G1, such as Pug or Terrier. Optional long aerial £2 extra Size: 52 x 21 x 19mm Can be supplied slim and long - see SL version

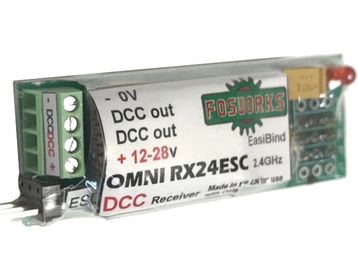

 OMNI receiver combined with 2A DCC interface module with additional ESC output for speed controller. The speed command from the handset is sent to the DCC decoder and the ESC in parallel, so that the decoder can be used as a sound card, with the ESC driving the motors.Therefore can be used with any size of loco. Size: 52 x 21 x 19mm

 Failsafe OMNI receiver combined with 2A DCC interface module with additional ESC output for 4QD speed controller, with 5V supply to speed controller. The speed command from the handset is sent to the DCC decoder and the ESC in parallel, so that the decoder can be used as a sound card, with the ESC driving the motors. Loss of radio signal results in a 2 second drop to zero speed signal. Use in conjunction with the Tx4 DM for ride-on locomotives. 52 x 21 x19mm

FRx24-2A receiver combined with 2 amp DCC interface module to operate DCC decoders. 12-28v input For use with OMNI Tx4 and Tx5 series transmitters. The two pcbs are connected by flexible cable allowing ease of fitting into smaller models. Optional long aerial £2 extra Size: 110 x 21 x 9mm

FRx24-5A receiver combined with 5 amp DCC interface module to operate DCC decoders such as ESU Loksound v5L. 12-18v input For use with OMNI Tx4 and Tx5 series transmitters.  Optional long aerial £2 extra Size: 55 x 21 x 19mm

FRx24-5A receiver combined with 5 amp DCC interface module to operate DCC decoders. 12-28v input For use with OMNI Tx4 and Tx5 series transmitters. The two pcbs are connected by flexible cable allowing ease of fitting into the model.  Optional long aerial £2 extra Size: 55 x 21 x 19mm

FRx24-5A receiver combined with 7 amp interface module to operate larger DCC decoders such as ESU Loksound v5XL. 12-28v input For use with OMNI Tx4 and Tx5 series transmitters. Ideal for G scale, larger G1 and G3 locos. Optional long aerial £2 extra Size: 56 x 23 x 21mm

 FRx-25 receiver for analogue DC electric models with the popular Timpdon Autoshuttle functions. The default mode of operation is manual, but with the push of a button, the unit is set into Auto mode where the movement of the vehicle is controlled automatically by track magnets. Perfect when you want to relax and watch the trains go by! You can regain control at any time with the press of a button on the handset. See instructions on LINKS page for details.
